Cradle Pegs

When I was designing the cradle I went back and forth about what I would use for the though tenons.  I really like the look of through tenons and found quite a few options I responded to, but they were all linear spikes that didn’t feel right with the curves of the cradle.  I decided I needed to come up with a curved, or rounded tenon.  I also wanted to create one that would be easy to take in or out when the time came.

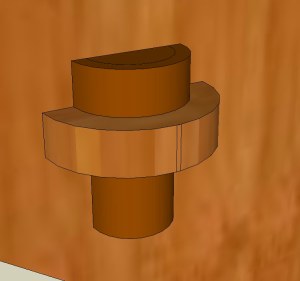

Sketchup was certainly my friend on this project:

Sketchup

My Sketchup helped me realize the head needed to be curved.  My sketchup skills however were not going to allow that!

Once I was happy with the design I needed to approach the one tool in my shop that I had yet to even come close to perfected–the lathe!

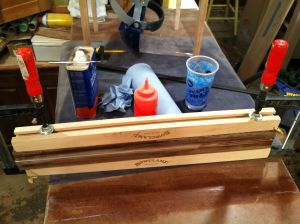

I started by glueing up two pieces of walnut.

I started by glueing up two pieces of walnut.

Cradle peg02

Next I headed to the nearly unused lathe to start to rough my stock

Next I headed to the nearly unused lathe to start to rough my stock

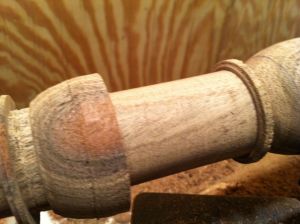

Based on the lines I roughed in--the pegs actually began to take shape.

Based on the lines I roughed in–the pegs actually began to take shape.

Cradle peg05

As I got closer, I cut the pieces down in order to create a smooth curved top for each.

As I got closer, I cut the pieces down in order to create a smooth curved top for each.

Dance of the Wooden Soldiers

Dance of the Wooden Soldiers

Next I headed to the band saw in order to cut the pegs  cleanly in half.  I don't use these wooden clamps often  enough, but sometimes they really come in handy!

Next I headed to the band saw in order to cut the pegs cleanly in half. I don’t use these wooden clamps often enough, but sometimes they really come in handy!

and then there were eight...

and then there were eight…

I had the cutest of shop assistants help me sand each of them down.

I had the cutest of shop assistants help me sand each of them down.

I laid each tenon out in order to trace out the mortise.

I laid each tenon out in order to trace out the mortise.

Cradle peg13

This made for a snug fit!

This made for a snug fit!

I must say this was really the 1st project that I had created using the lathe.  I am no turner (yet), but can see how the lathe and what I can create with it will begin to be in integral part of my designs and woodworking experience.

Thanks for stopping by the shop.

It’s Bed Time!

I recently finished up two loft beds for my son and daughter and I realized that before I blogged about that I needed to actually post the final results of the Twin Cradle.  I know, I know.  I’m a terrible blogger.  But then again, on the internet time kinda stands still.   I could blog about about anything and pretend it’s current.  Half the time I go back and catch up on ancient blog posts filling my reader.  Well enough procrastinating… Here in one post is the end of the Cradle Series.

 Twin Cradle; Part 4  The Wrap up

Well the twins are off to college by now…well not really, but they have certainly outgrown this cradle.

You might remember that one of my goals as to build this sans hardware.  I wanted it to be a piece of furniture that could be quickly assembled and then knocked down for easy storage.  It needed to be a beautiful piece of “temporary” furniture.  I’ll let you be the judge.

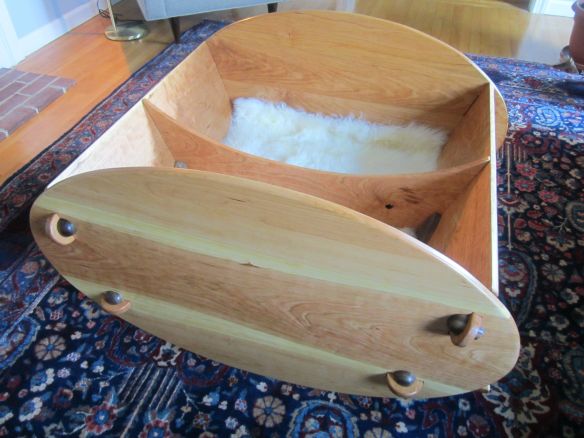

Cradle01

The finished product

Cradle02

My wife provided a luxurious pad for them to sleep on.

Cradle03

I was very happy with the grain selection in this beautiful piece of cherry.

Cradle04

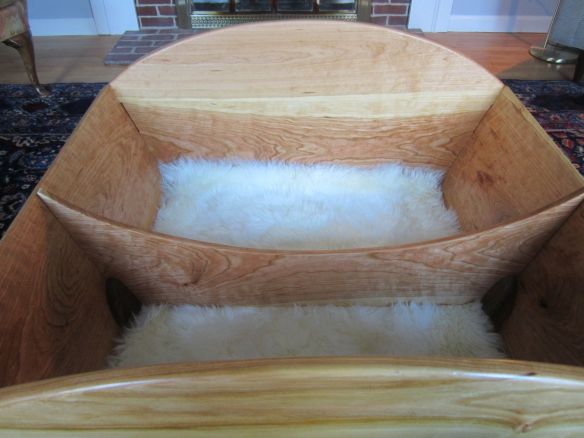

A side view showing the curves and the divider

Cradle06

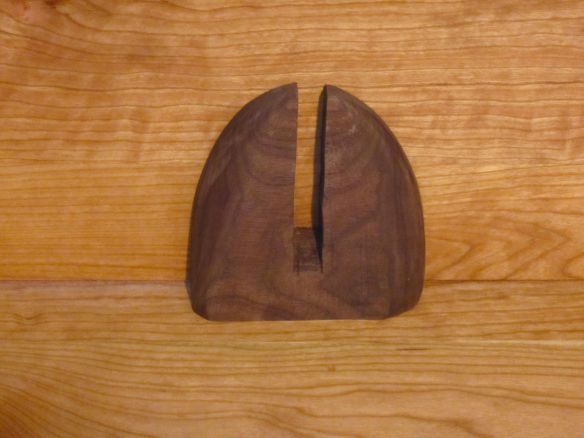

This little piece I designed to hold the divider in place.

Cradle05

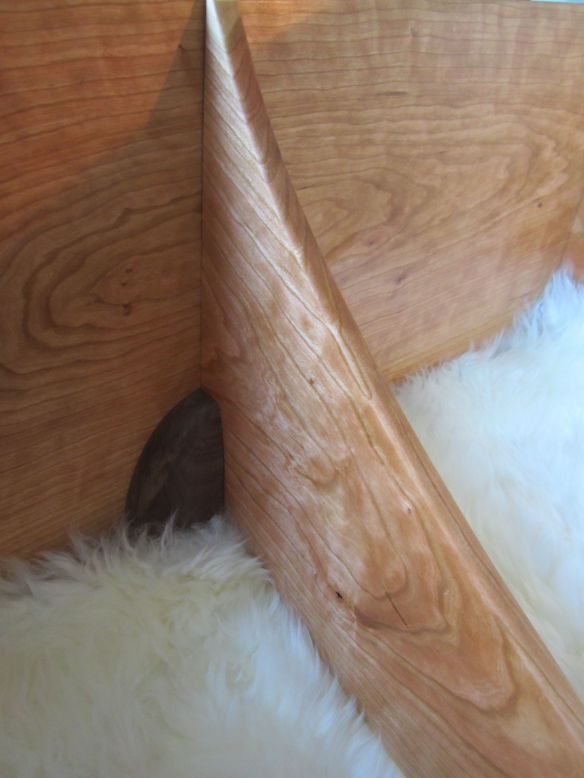

…said divider in place.

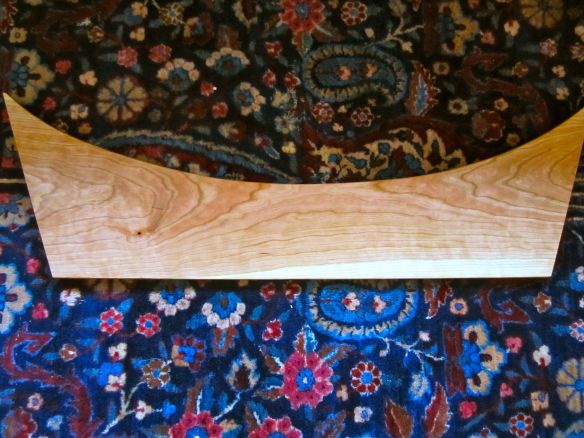

Cradle07

The divider can easily be removed, allowing the twins to sleep together.

Cradle08

I designed & built foot rests on each side, so the cradle could be easily rocked with your feet.

Cradle12

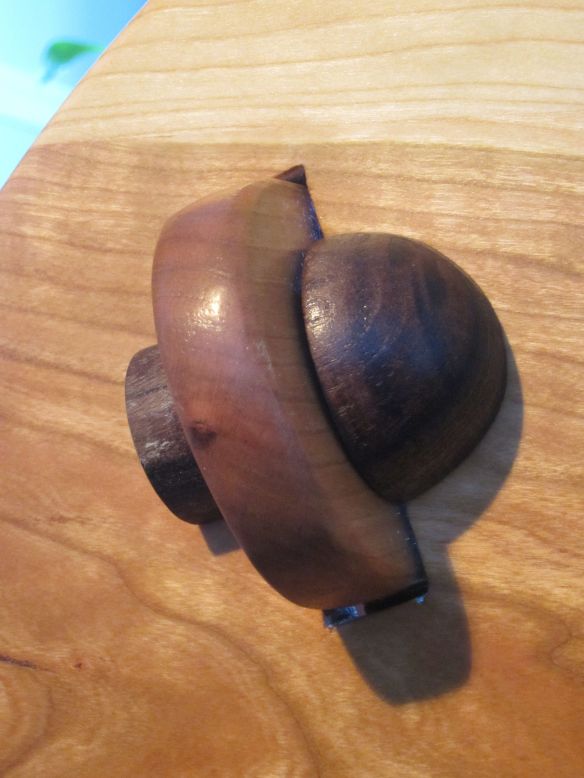

The peg and though mortise

Cradle15

Introducing Alex and James!

Cradle20

Me and the best clients a guy could ask for!

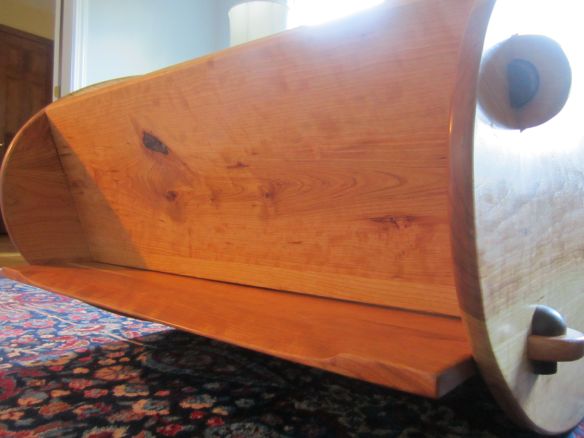

Cradle09 Cradle10 Cradle11 Cradle13 Cradle14 Cradle16 Cradle17 Cradle18 Cradle19

So that wraps my cradle series.  I’ll post one more related post on how I built the pegs, so look for that.  Then I’ll catch up and share the loft beds.  I’ve also been building a chicken coop!

Thanks for stopping by the shop, it’s great to get back to blogging.
